1.Products Introduction

     Online thickness measurement system is the latest technology that has revolutionized many industries, including manufacturing and construction. The system provides accurate and reliable measurements of the thickness of various materials such as PE PP HDPE etc, making it an invaluable tool for quality control and process optimization.


2.Main Structures

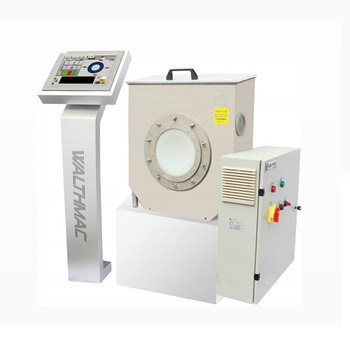

      Online Thickness Measuring System includes Scanning Box,DSP Processor, Man-machine Interface and Controller.The specific procedures are showing as above picture.

3.Technical Parameter

4.Features

• Accurate measurements: Online thickness measurement systems incorporate advanced sensors that can measure thickness with high precision and accuracy. This ensures that the measurements are reliable and can be used for quality control purposes.
• Real-time data: The online thickness measurement system provides real-time data on the thickness of materials being measured. This is an essential feature that allows for immediate corrective action to be taken when there are any deviations in thickness.
• Automated operation: This system is fully automated, meaning that it can operate without any human input. This feature reduces the possibility of errors caused by human operators.
• User-friendly interface: The system has a user-friendly interface that allows for simple navigation and control over the measurement process.

5.Advantages

• Increased Efficiency
• Quality Control
• Time & Cost Savings
• Real-time Monitoring

6.Applicable Scope

    Online Thickness Measuring System is useful for many types of plastic pipes like gas pipes, water supply pipes, drainage pipes, etc. Continuously real-time measure and monitor the changes of thickness, outer diameter, eccentricity, and out of roundness during the entire process of pipe production.

7.The Installation

   After the vacuum cooling tank cools the plastic pipe, installing a scanning box to measure the thickness of the pipe and detect whether the product has defects using ultrasound.

8.On-sight Application

      We find some applications using on the factories which sent from our long-term partners.

9.About WALTHMAC

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.

    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.

    Since its establishment for 14 years, we have participated in rubber and plastic exhibitions in domestic and abroad every year, cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
