Product Details
Place of Origin: China
Brand Name: Walthmac
Certification: CE
Model Number: ULTRAMAC 032-4T-OD
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $32,700.00-$36,800.00
Packaging Details: Wooden cases
Delivery Time: 45 working days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 80 sets per month
Condition: |
New |
Color: |
Light Grey |
Waranty: |
1 Year |
The OD Measuring Range: |
6-32 Mm |
Measure Wall Thickness Range: |
0.25-6 Mm |
Machinery Test: |
Provided |
Operation Voltage: |
AC 220V |
Control Units: |
Adaption Algorithm |
Power: |
<30w |
Probes: |
4 |
Condition: |
New |
Color: |
Light Grey |
Waranty: |
1 Year |
The OD Measuring Range: |
6-32 Mm |
Measure Wall Thickness Range: |
0.25-6 Mm |
Machinery Test: |
Provided |
Operation Voltage: |
AC 220V |
Control Units: |
Adaption Algorithm |
Power: |
<30w |
Probes: |
4 |

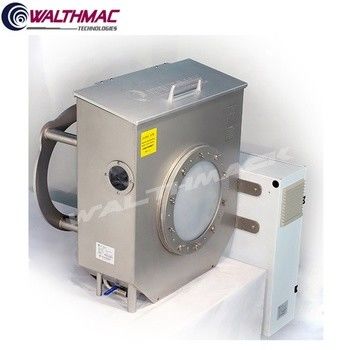

Wall Online Thickness Measurement System For Equipment PP/PVC/Pipe Production Line
1.Products Introduction
Online Thickness Measurement System under WalthMac monitors the quality of plastic pipes in real- time . It contains world-class ultrasound and data processing software and hardware, which can achieve online measurement of various geometric dimensions such as pipe wall thickness, Online Thickness Measurement System can detect product defects in the first time, reduce product quality risks and production costs, and ensure a simple and orderly production management process.
2.Main Structures
Online Thickness Measurement System includes Scanning Box,DSP Processor, Man-machine Interface and Controller.The specific procedures are showing as above picture.
3.Paramter
| Display unit | 12''/15''/21'' true color touch screen |
| The OD measuring range | 0.15-1600mm |
| Control unit | Walthmac DATASE 1000R ultrasonic measurement control system |
| The maxium measuring precision | 0.001mm |
| Power | <30w |
4.Features
5.Advantages
6.Applicable Scope
Online Thickness Measurement System is useful for many types of plastic pipes like gas pipes, water supply pipes, drainage pipes, etc. Continuously real-time measure and monitor the changes of thickness, outer diameter, eccentricity, and out of roundness during the entire process of pipe production.
7.The Installation
After the vacuum cooling tank cools the plastic pipe, installing a scanning box(Online Thickness Measurement System) to measure the thickness of the pipe and detect whether the product has defects using ultrasound.
8.On-sight Application
We find some applications using on the factories which sent from our long-term partners.
9.About WALTHMAC
Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.Established in 2009,but we have served over 800 companies in the world.The Gravimetric Control System has over 60% proportion in domestic,Online Thickness Measurement System and Gravimetric Batch Blender are also sell well in China.
Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.
Since its establishment for 14 years, we have participated in rubber and plastic exhibitions in domestic and abroad every year, cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
