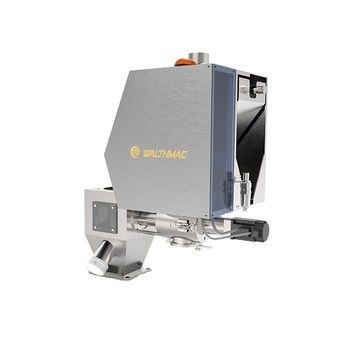

Filler Masterbatch Side Feeder Single Screw Controlling High Precision

Filler Masterbatch Side Feeder Single Screw Controlling With High Precision


1.Introduction

    Side Feeder under WalthMac is integrated over 5 patents and adopt world top class component from international famous suppliers, plus strict ISO9001 manufacturing management for quality control. Ensure each single set of our device perform perfect working status on our clients’ production line.

2.Main Structures




• Data Acquisition Control Unit is used for adopting and dealing data
• Servo Motor works as controlling machine operating
• Display Control Unit is used for setting and showing data


3.Parameter



4.Features

• WalthMac multi-function HMI
• Unique screw feeding structure with patent.
• High speed DSP module for fast data processing
• World top class core hardware component in the world


5.Profits

• Adopting high-precision weightlessness measurement system
• System closed-loop control, faster response speed
• Suitable for different types of granular materials
• Hardware and software control for more reliable operation

6.Applications

    Usually,the Side Feeder is used for the manufactures such as using masterbatch or additive or other micro amount materials in the process of producing will get much assistance.Control the material which need to be added in small amounts.The operation voltage could be customized to adapt to different work environments.And it’s avaliable for multiple dindustrial fieldbus,the power 05~200w.

7.Way of installation



    Installing an adapter on the extuder firstly,then set the Side Feeder on the adapter,there will have two hoppers to send materials into machine like picture painted.

8.On-sight Application

    Side Feeder usually used in the extrusions which need to add micro amount of materials.


9.Profile of WalthMac

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.



    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.



   Since extablished in 2009,in these 14 years, we have participated in plastic and rubber exhibitions in China and other countries such as Vietnam,Thailand,America,England etc. We are cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
