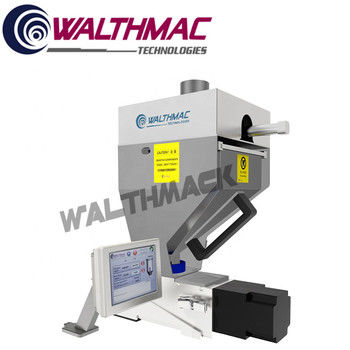

Single Screw Side Feeder Lose In Weight Granules Feeding Machine

Single Screw Side Feeder Lose In Weight Granules Feeding


1.Introduction

    Side Feeder under WalthMac is applied for production process requirements with small or even trace amounts of materials.It was continuously researching and developing by our R&D lab over past ten years, both software and core hardware kept catching up with current international leading technology edges. Now the 5th generation gravimetric screw feeder perform dosing in high precision and extreme stable conditions with outstanding manifestation.

2.Main Structures




• Data Acquisition Control Unit is used for adopting and dealing data
• Servo Motor works as controlling machine operating
• Display Control Unit is used for setting and showing data


3.Parameter



4.Features

• WalthMac centralized control display
• Patented mechanical screw dosing design
• International top class DSP data processing module with exceptional fast speed
• Strictly screened international top branded suppliers for core components


5.Profits

• High precision lose-in-weight measurement system
• Servo drive system makes it respond quickly
• Adopt patent technology inner screw feeding structure
• Application for different material

6.Applications

    Usually,the Side Feeder is used for the manufactures such as using masterbatch or additive or other micro amount materials in the process of producing will get much assistance.Control the material which need to be added in small amounts.The operation voltage could be customized to adapt to different work environments.And it’s avaliable for multiple dindustrial fieldbus,the power 05~200w.

7.Way of installation



    Installing an adapter on the extuder firstly,then set the Side Feeder on the adapter,there will have two hoppers to send materials into machine like picture painted.

8.On-sight Application




9.Profile of WalthMac

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.



    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.



   Since extablished in 2009,in these 14 years, we have participated in plastic and rubber exhibitions in China and other countries such as Vietnam,Thailand,America,England etc. We are cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
