Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision

Product Details

Place of Origin: China

Brand Name: Walthmac

Certification: ISO

Model Number: WPB-T3

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $11,400.00-$12,800.00

Packaging Details: Wooden cases

Delivery Time: 5-8 working weeks

Payment Terms: T/T, L/C, D/P, Western Union

Supply Ability: 80 sets per month

Get Best Price
Contact Now
Specifications
Highlight:

Powdery masterbatch feeder

,

Powder Feeder Machine Twin Screw

,

Masterbatch Powder Feeder Machine

Condition:
New
Waranty:
1 Year
Machinery Test:
Provided
Control Units:
Adaption Algorithm
Output:
10~2000 L/H
Size:
1058*635*1210 Mm
Operation Voltage:
AC 220V
Mechanism Materials:
Stainless Steel,aluminum Alloy
Condition:
New
Waranty:
1 Year
Machinery Test:
Provided
Control Units:
Adaption Algorithm
Output:
10~2000 L/H
Size:
1058*635*1210 Mm
Operation Voltage:
AC 220V
Mechanism Materials:
Stainless Steel,aluminum Alloy
Description

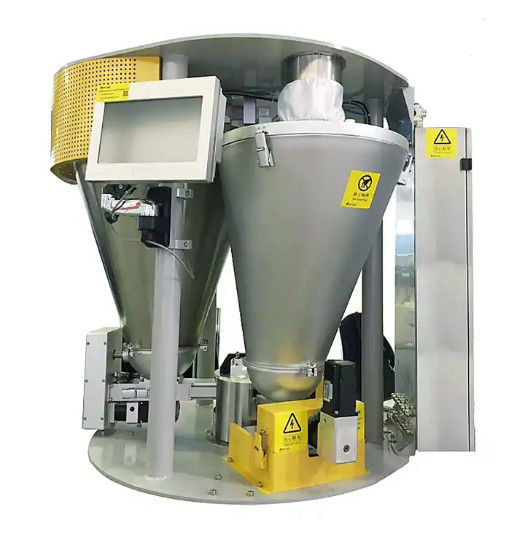

Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision

Powdery Masterbatch Powder  Feeder Machine Twin Screw Feeder With High Precision


1.Introduction
  Powder Feeder Machine under WalthMac is an equipment mainly used for dosing material which in powdery.Our machine's weighing resolution is 1/4000000 and the error of dosing material is under 0.5%.This system will save much more raw materials for manufacturers.

Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 0

2.System Principle


     Powder Feeder Machine adopts integrated weighing mechanism of material hopper and conveyor.The high precision weighing component can monitor the weight losing of material in per unit time when system start working on feeding.Compared with setting value,caculate the difference then to adjust the screw speed of powder doser to make actual feeding as same as setting value.
 Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 1


3.Parameter



Control Units  Microprocessors,Adaptive alloy
Display Unit  7''/10'' touch screen
Weighing Resolution  1/4000000
Drive Unit  Servo Drive
Communication interface  Available for multiple industrial fieldbus



4.Features

  • Adopt integrated weighing machanism of material hopper and material conveyor
  • Twin screw feed material
  • It can work independently or co-work with other devices
  • Applicable for material in powdery shape


5.Advantages

  • Suitable for high precison dosing situation
  • Make powder uneasy to block
  • Change the data of output and recipe any time
  • System dosing error precision is under 0.5%

6.Used area


The Powder Feeder Machine runs with HMI of WALTHMAC with full intellectual property rights. It can work independently or integrated with other WALTHMAC auxiliary devices on clients' production line. Customized multiple options enable the system to solve different/special production requirements from our clients.


7.The installation

     Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 2

    Installing the Powder Feeder Machine with the platform on the extruder,the materials will release from the hose.



8.On-sight Application

      Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 3          Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 4


9.Profile of WalthMac

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.

            Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 5

    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.

        Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 6

      Since extablished in 2009,in these 14 years, we have participated in plastic and rubber exhibitions in China and other countries such as Vietnam,Thailand,America,England etc. We are cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.

              Powdery Masterbatch Powder Feeder Machine Twin Screw High Precision 7

 10.FAQ



        Q1:Are you manufacturer or trade company?

         A:We are manufacturer who design and sell own products.



         Q2:What's the terms of payment?

         A:We usually deal with T/T for prepayment.



         Q3:What's the deliver terms?

         A:We can deal under EXW,FOB,CIF,CFR
