Plastic Raw Materia Gravimetric Doser 800-960kg/H Gravimetric Weigh Feeder

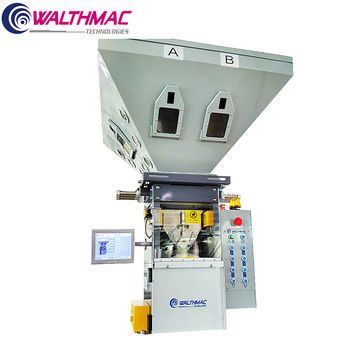

Plastic Raw Material Gravimetric Dosing Mixing System Weighing System

1.Products Introduction

     Gravimetric Dosing Mixing System under WalthMac is a weighing and mixing system,this model belongs to WBB-S series,it begins to blend mixed material in the mix chamber according to the Material Level Sensor.Anti-interference filtering algorithm can promote the accuracy, Even in a vibrating environment.Function of opening the discharge valve more times can solve the electrostatic problem.Touch screen human-machine interface.Precision calculation based on industry international calculation standard.

2.Main Structure



• Air Source Processor works as converting compressed air into kinetic energy
• The solenoid valve works as providing kinetic energy
• The display control unit works as displaying the cutting accuracy of each component
• The cylinder works as controlling the knife valve for each silo's feeding
• Data Acquisition Control Unit works as controlling and collects the operational information of the entire machine

3.Parameter

4.Features

• USB access and Ethernet port
• Support MODBUS-TCP and remote data transmission and update
• Six raw materials can be blended
• Material level sensor

5.Benefits

• Maxium throughput is 960kg/hr (for this type)
• Feeding error is less than 0.5%
• Stainless steel won't reflect with raw material
• Weighing resolution is 1/2,000,000

6.Applications Scope

     Gravimetric Dosing Mixing System is applicable for plastic film,cables,plastic modification industires.And which is suitable for materials in good flowability.

7.Way of installation

• Online

          Arranging Gravimetric Dosing Mixing System with an adapter on the extruder directly ,this installation needs to convey raw materials once from storage to system by vacuum loader.

• Offline

      Arranging the Gravimetric Dosing Mixing System on the floor with a platform,there will convey raw materials twice ,first step is from storage to system by vacuum loaders,second step is from the bottom hopper of Gravimetric Dosing Mixing System to vacuum loader upon the material hopper which set on the extruder.

8.On-sight Application

     Due to we sell well of our Gravimetric Dosing Mixing System,our customers send feedback with pictures every year.

9.Profile of WalthMac

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". We have set high standards for product design, internal management, and quality control.During 14 years,we are cooperating with over 800 companies in the world and passed CE,ISO etc certifications.

    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.

   Since extablished in 2009,in these 14 years, we have participated in plastic and rubber exhibitions in China and other countries such as Vietnam,Thailand,America,England etc. We are cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
