Low Feeding Error Gravimetric Batch Blender 0.4kw Gravimetric Dosing System

Low Feeding Error Gravimetric Batch Blender For Six Components

1.Products Introduction

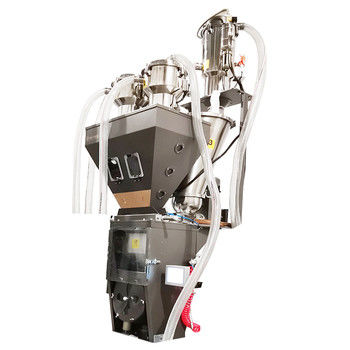

     WalthMac WBB Series Gravimetric Batch Blender under WalthMac is a weighing and mixing system,this model belongs to WBB-H series,it has two procedures of weighing unit,one is weighing the mixed materials from six hoppers before into the mix chamber,another is before blending,will weigh the materials when it meet the setting value.

2.Main Structure



• Air Source Processor works as converting compressed air into kinetic energy
• The solenoid valve works as providing kinetic energy
• The display control unit works as displaying the cutting accuracy of each component
• The cylinder works as controlling the knife valve for each silo's feeding
• Data Acquisition Control Unit works as controlling and collects the operational information of the entire machine

3.Parameter

4.Features

• Two weighing sensor
• High efficient of automatical
• Raw materials are in good flowable
• Equipments are exceed internatimal standard

5.Benefits

• Maxium output is 400kg/hr (for this type)
• Feeding error not more than 0.1%
• Extremely save raw materials
• Multiple language option

6.Applications Scope

     Gravimetric Batch Blender is applicable for plastic film,cables,plastic modification industires.This type can blend six types of raw materials with high precision.

7.Way of installation

• Online

          Arranging Gravimetric Batch Blender with an adapter on the extruder directly ,this installation needs to convey raw materials once from storage to system by vacuum loader.

• Offline

      Arranging the Gravimetric Batch Blender on the floor with a platform,there will convey raw materials twice ,first step is from storage to system by vacuum loaders,second step is from the bottom hopper of Gravimetric Batch Blender to vacuum loader upon the material hopper which set on the extruder.

8.On-sight Application

    Most of our customers will give feedback of our systems,we have received many good evaluation.

9.Profile of WalthMac

    Mianyang WalthMac Technology Co., Ltd. is a national high-tech enterprise pursuing "product is art". Realizing highly automatic of smart workshop is a trend of future factory development.

    Achieving a highly intelligent workshop in the future is the trend of factories in the future, and it is also the parent goal for Worth to strive for. Worth products focus on helping users achieve automation throughout the production process, from improving product quality and saving raw materials to reducing the dependence on labor throughout the process.

   Since extablished in 2009,in these 14 years, we have participated in plastic and rubber exhibitions in China and other countries such as Vietnam,Thailand,America,England etc. We are cooperating with over 800 companies like DEMUKA,GSM etc, and establishing long-term cooperative relationships with them.
